Tubela Tube Bender Help Needed
« on: February 18, 2016, 04:30:16 AM »

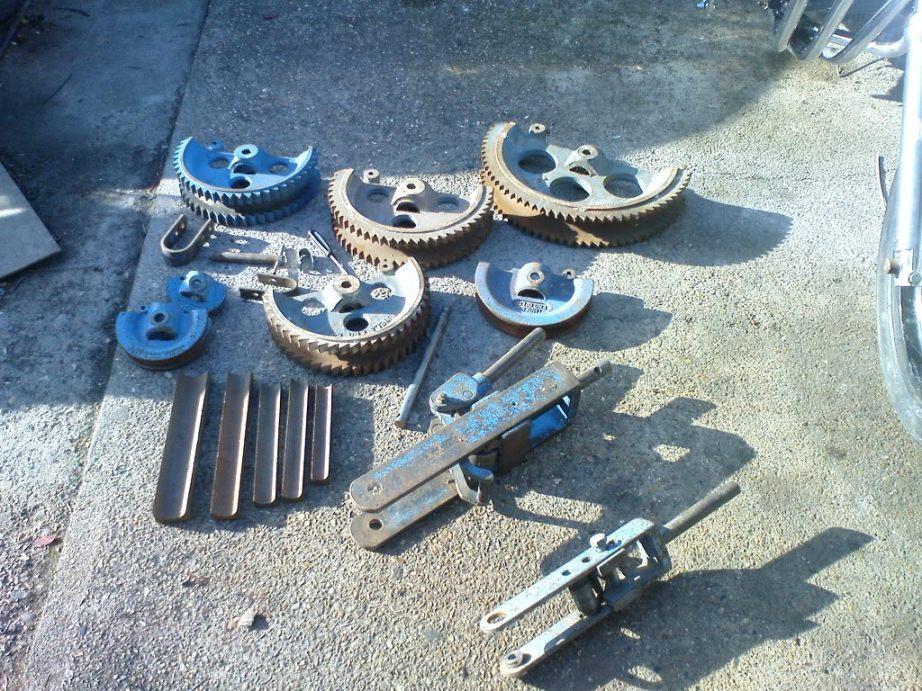

Has anyone got an instruction manual for a Tubela tube bender similar to the picture  :scratch: I had a copy but it's lost in the depths of a portable hard drive somewhere :bang: basically I have a couple of parts missing (the mounting plate for 1) and I need to make the parts  :thumbup:
Logged
People say you only live once ! I say thank F@*K can't afford to do it twice.

Offline NeoTech

  • Hero Member
  • *****
  • Posts: 826
  • Country: se
    • Roughedge Hobbyworks
Re: Tubela Tube Bender Help Needed
« Reply #1 on: February 18, 2016, 03:06:00 PM »
If i had a magnifying glass so i could actually see whats on the picture at all.
Logged
Machinery: Optimum D320x920, Optimum BF20L, Aciera F3. -- I have not failed. I've just found 10,000 ways that won't work. http://www.roughedge.se/blogg/

Offline mexican jon

  • Full Member
  • ***
  • Posts: 214
  • Country: england
Re: Tubela Tube Bender Help Needed
« Reply #2 on: February 18, 2016, 04:01:01 PM »
 :scratch: :scratch: :scratch:
Logged
People say you only live once ! I say thank F@*K can't afford to do it twice.

Offline awemawson

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 8967
  • Country: gb
  • East Sussex, UK
Re: Tubela Tube Bender Help Needed
« Reply #3 on: February 18, 2016, 04:24:23 PM »
I think Neo is saying he cannot see enough detail from your picture. Maybe add a few at 640x480 resolution taken a bit closer ?
Logged
Andrew Mawson
East Sussex

Offline mexican jon

  • Full Member
  • ***
  • Posts: 214
  • Country: england
Re: Tubela Tube Bender Help Needed
« Reply #4 on: February 18, 2016, 05:41:20 PM »
Quote from: awemawson on February 18, 2016, 04:24:23 PM
I think Neo is saying he cannot see enough detail from your picture. Maybe add a few at 640x480 resolution taken a bit closer ?

 :thumbup: :thumbup: :thumbup:
Logged
People say you only live once ! I say thank F@*K can't afford to do it twice.

Offline NeoTech

  • Hero Member
  • *****
  • Posts: 826
  • Country: se
    • Roughedge Hobbyworks
Re: Tubela Tube Bender Help Needed
« Reply #5 on: February 19, 2016, 03:01:36 AM »
Sarcasm don't translate well over forums. =)
Logged
Machinery: Optimum D320x920, Optimum BF20L, Aciera F3. -- I have not failed. I've just found 10,000 ways that won't work. http://www.roughedge.se/blogg/

Offline mexican jon

  • Full Member
  • ***
  • Posts: 214
  • Country: england
Re: Tubela Tube Bender Help Needed
« Reply #6 on: February 19, 2016, 06:08:57 AM »
 :proj:
Quote from: NeoTech on February 19, 2016, 03:01:36 AM
Sarcasm don't translate well over forums. =)

 :lol: :lol: :lol:
Logged
People say you only live once ! I say thank F@*K can't afford to do it twice.

Offline NeoTech

  • Hero Member
  • *****
  • Posts: 826
  • Country: se
    • Roughedge Hobbyworks
Re: Tubela Tube Bender Help Needed
« Reply #7 on: February 19, 2016, 03:31:50 PM »
Looks you got everything there actually.. the swing arm the small arm on the side of the big "yoke" parts have a piece that will push on the ratchet die.
You just need a way of fixturing it. The clamps for the tube connects to the ratchet dies and the shoo rides on the inside of the yoke..

Quite ingenious desing having the ratchet integrated to the die. But as well really unique.. never seen it before. =)
Logged
