Author Topic: Diaform "AT" Surface Grinder wheel dresser/profiler  (Read 853 times)

Offline mm289

  • Jr. Member
  • **
  • Posts: 27
Diaform "AT" Surface Grinder wheel dresser/profiler
« on: December 23, 2017, 05:47:25 AM »
Hi,

recently bought some slip gauges from an auction and picked up a couple of other bits to save from the scrap bin. One of them was a Diaform AT wheel dresser/profiler for a surface grinder stone I think.

Its like a pantograph style device that uses a guide on a pre-formed template to move a diamond bit over the stone and cut it to any shape you want. Idea I think is you can then grind specific profiles with the stone.

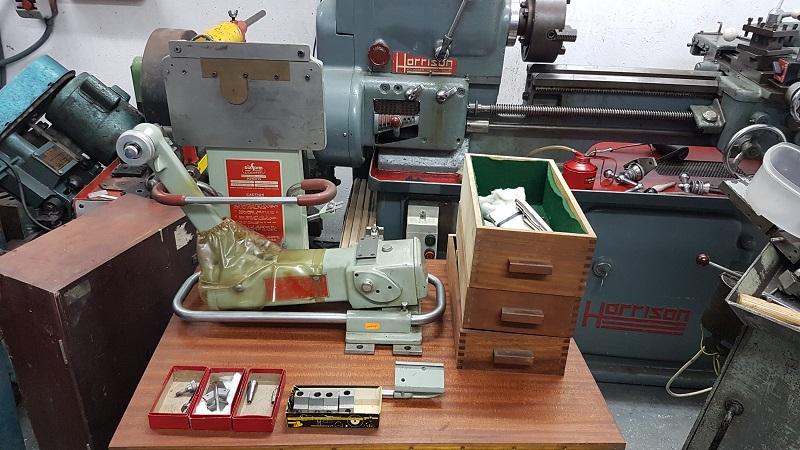

It is still in its original box with all the packing/shipping brackets etc. pics below.

(well there will be when I can figure out how to upload a photo  :scratch: )

Just wondered if anyone had seen these before or even had a use for one?

Cheers,

Paul

Offline awemawson

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 6587
  • Country: gb
  • East Sussex, UK
Re: Diaform "AT" Surface Grinder wheel dresser/profiler
« Reply #1 on: December 23, 2017, 05:54:12 AM »
Paul, I had one for years - both for my J&S540 and 1300 but never used them - I had had plans to drive the diamond under CNC control but it never happened - eventually I gave them away as they are very bulky
Andrew Mawson
East Sussex
