Hi Dennis, Peter  :wave:  I'll be posting pictures as soon as I can get near a real computer. I know it's a little boring without  ::)

My phone is doing quite well but slow typing and typos needing attention. Very awkward getting pic's sorted too.

The computer won't even boot up! I think it needs the nerd touch!  :hammer: If I hadn't just purchased the DROs I'd have just got a new computer!


Still, DROs are brilliant  :smart:

Ralph.


I know what I know and need to know more!!!

lordedmond

  • Guest
Re: A few pics of my shop...
« Reply #52 on: May 24, 2011, 03:49:48 AM »
Ralph

these are cheap for a simple PC not sure how much power you need

A mate has one as they are local and it runs well and quiet

http://www.web-systems.co.uk/?page=Computers


£ 125 approx for a base and £175 in monitor   note you buy the OS but you have that from the due one  :)

Stuart
« Last Edit: May 25, 2011, 06:59:35 AM by lordedmond »

Offline andyf

  • In Memoriam
  • Hero Member
  • *****
  • Posts: 1795
  • Country: gb
    • The Warco WM180 Lathe - Modifications
Re: A few pics of my shop...
« Reply #53 on: May 24, 2011, 05:12:57 AM »
Last month, I replaced a 12 year old desktop and its bulky monitor with a £150 second-hand setup from here: http://www.computerclearances.co.uk/ .

Came with XP Pro and Open Office installed, R/W DVD drive and wireless card. The specs didn't mention a floppy drive, and though one was fitted, it wasn't connected so I fitted the cables out of the old machine and that got it it going. No audio amplifier, so I had to buy a pair of cheap speakers with integral amp to hear anything.

So far, I'm chuffed to bits with it.

Andy
Sale, Cheshire
I've cut the end off it twice, but it's still too short

Offline Divided he ad

  • WARNING: LIKES SHINEY THINGS
  • The Collective
  • Hero Member
  • *****
  • Posts: 1950
  • Country: gb
  • Between Chester, Wrexham, ruthin & Holywell :-)
Re: A few pics of my shop...
« Reply #54 on: May 24, 2011, 04:56:57 PM »
Well.... I just spent about an hour writing a full blown post on my works and it got erased when my mum's computer decided to shut down IE8... POS!  :hammer: :hammer: :hammer: :bang: :bang: :bang:
So here we go again!




Thanks for the tips fellas, will look into them if my tech nerd fails (shouldn't do.) at least I have every picture and video saved on 2 external hard drives


Now, on to the mill....

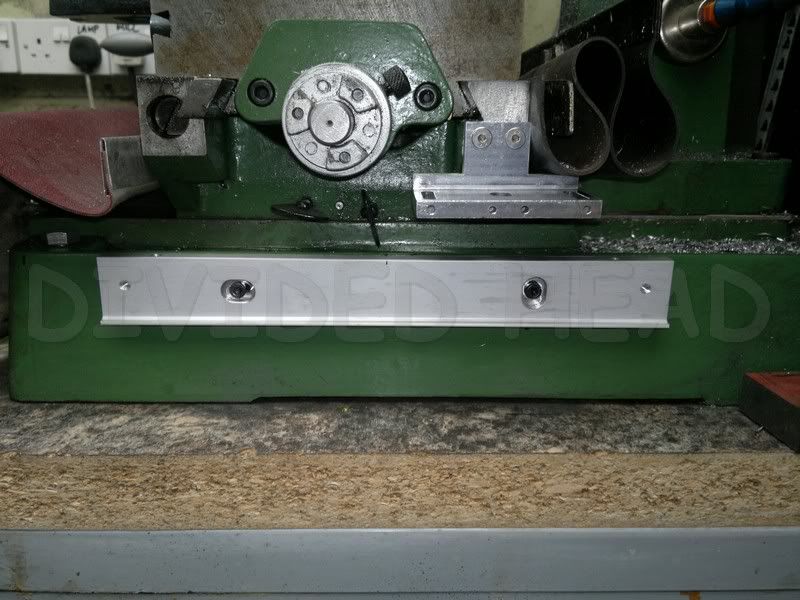

First was to butcher a few of the brackets provided with the DROs....
