Myford slotted quadrant
« on: January 15, 2011, 10:49:22 AM »
Hi Lads ,, a bit help needed

Has anyone got a myford slotted quadrant for metric /dp/ba threads ,, if so any chance of a photo and a bit measure up of it  :dremel:


Thanks Rob
Logged

Offline Bluechip

  • Madmodder Committee
  • Hero Member
  • *****
  • Posts: 1513
  • Country: england
  • Derbyshire UK
Re: Myford slotted quadrant
« Reply #1 on: January 15, 2011, 11:30:36 AM »
Hi Rob

Is that the thing with two slots at an angle ?? And a biggish hole at one end to pivot on ????


like this ...
« Last Edit: January 15, 2011, 11:43:07 AM by Bluechip »
Logged
I have a few modest talents. Knowing what I'm doing isn't one of them.

Rob.Wilson

  • Guest
Re: Myford slotted quadrant
« Reply #2 on: January 15, 2011, 11:36:22 AM »
Thats the bugger Dave

You got one  :D


Rob
Logged

Offline Bluechip

  • Madmodder Committee
  • Hero Member
  • *****
  • Posts: 1513
  • Country: england
  • Derbyshire UK
Re: Myford slotted quadrant
« Reply #3 on: January 15, 2011, 11:44:07 AM »
Hi Rob

Nope, sorry ..

Never seen one before in me life    :lol:  :lol:  :lol:  :lol:  :lol:

BC
Logged
I have a few modest talents. Knowing what I'm doing isn't one of them.

Rob.Wilson

  • Guest
Re: Myford slotted quadrant
« Reply #4 on: January 15, 2011, 11:48:16 AM »
Quote from: Bluechip on January 15, 2011, 11:44:07 AM
Hi Rob

Nope, sorry ..

Never seen one before in me life    :lol:  :lol:  :lol:  :lol:  :lol:

BC

TWAT  :lol: :lol: :lol: :lol: :lol:  i was all excited there Dave


Rob


Funny just looked up  :doh: photo was not there before  :poke: :poke:
« Last Edit: January 15, 2011, 11:56:41 AM by Rob.Wilson »
Logged

Offline Bluechip

  • Madmodder Committee
  • Hero Member
  • *****
  • Posts: 1513
  • Country: england
  • Derbyshire UK
Re: Myford slotted quadrant
« Reply #5 on: January 15, 2011, 11:50:38 AM »
Hi Rob

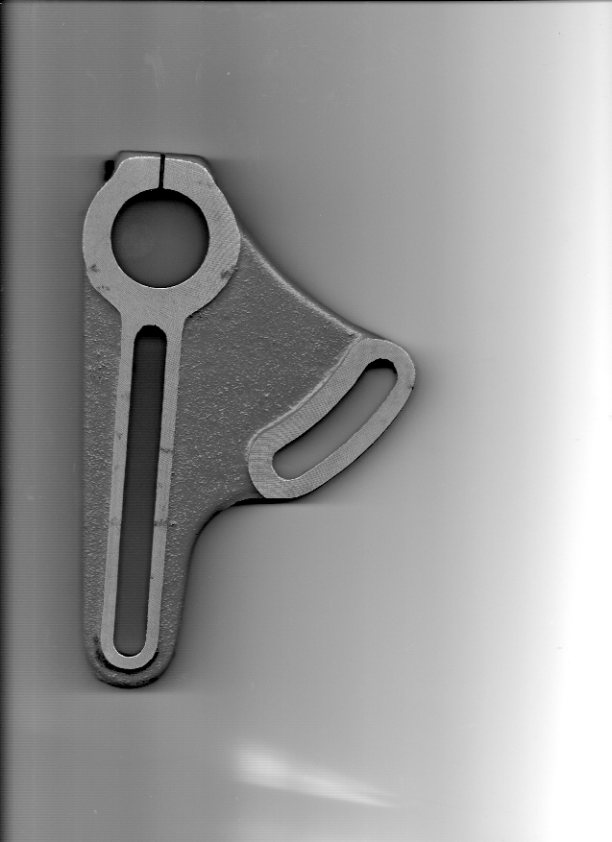

YES  I've got one... just took the piccy ...

Sorry, a bit dieseled up at the mo.

Been on the sozzle  :beer:

What measurements do you want .. all of them ???

BC
Logged
I have a few modest talents. Knowing what I'm doing isn't one of them.

Rob.Wilson

  • Guest
Re: Myford slotted quadrant
« Reply #6 on: January 15, 2011, 11:53:48 AM »
Hi Dave  :D


Is one side flat ,, the side were the gears it ,,,,,,, if so will it scan  :dremel:

Rob
Logged

Offline Bluechip

  • Madmodder Committee
  • Hero Member
  • *****
  • Posts: 1513
  • Country: england
  • Derbyshire UK
Re: Myford slotted quadrant
« Reply #7 on: January 15, 2011, 11:55:38 AM »
Hi Rob

Yes-flat-ish ...

Shall we do this on SKYPE ... fingers quite out of control ...

BC
Logged
I have a few modest talents. Knowing what I'm doing isn't one of them.

Rob.Wilson

  • Guest
Re: Myford slotted quadrant
« Reply #8 on: January 15, 2011, 11:57:38 AM »
Ok Dave  :thumbup:
Logged

Offline Bluechip

  • Madmodder Committee
  • Hero Member
  • *****
  • Posts: 1513
  • Country: england
  • Derbyshire UK
Re: Myford slotted quadrant
« Reply #9 on: January 15, 2011, 12:02:25 PM »


Eeeeeeee, owd on lad .... piccy to follow...

BC
Logged
I have a few modest talents. Knowing what I'm doing isn't one of them.

Rob.Wilson

  • Guest
Re: Myford slotted quadrant
« Reply #10 on: January 15, 2011, 12:07:01 PM »
What a Star  :bow: :bow: :bow: :bow:  :D


Just what i need  :D i no the bore size so i can work everything out from that  :ddb: :ddb: :ddb:


Cheers Rob
Logged

Offline Bluechip

  • Madmodder Committee
  • Hero Member
  • *****
  • Posts: 1513
  • Country: england
  • Derbyshire UK
Re: Myford slotted quadrant
« Reply #11 on: January 15, 2011, 12:09:26 PM »
Quote from: Rob.Wilson on January 15, 2011, 12:07:01 PM
What a Star  :bow: :bow: :bow: :bow:  :D


Just what i need  :D i no the bore size so i can work everything out from that  :ddb: :ddb: :ddb:


Cheers Rob

Hi Rob

Don't forget the other side has a boss on it .... not flat ..

BC
Logged
I have a few modest talents. Knowing what I'm doing isn't one of them.

Rob.Wilson

  • Guest
Re: Myford slotted quadrant
« Reply #12 on: January 15, 2011, 12:15:20 PM »
Quote from: Bluechip on January 15, 2011, 12:09:26 PM
Quote from: Rob.Wilson on January 15, 2011, 12:07:01 PM
What a Star  :bow: :bow: :bow: :bow:  :D


Just what i need  :D i no the bore size so i can work everything out from that  :ddb: :ddb: :ddb:


Cheers Rob

Hi Rob

Don't forget the other side has a boss on it .... not flat ..

BC


:thumbup:  i will work from the non slotted one , the one i have for those dimensions  :dremel:  :ddb: :ddb:


Rob


Logged

Offline John Stevenson

  • In Memoriam
  • Hero Member
  • *****
  • Posts: 1643
  • Nottingham, England.
Re: Myford slotted quadrant
« Reply #13 on: January 15, 2011, 02:16:39 PM »
Why do you need one ?

John S.
Logged
John Stevenson

Rob.Wilson

  • Guest
Re: Myford slotted quadrant
« Reply #14 on: January 15, 2011, 02:24:41 PM »
Hi John

So i can cut a 16 DP worm on a shaft   :dremel:

Rob
Logged

Offline Bluechip

  • Madmodder Committee
  • Hero Member
  • *****
  • Posts: 1513
  • Country: england
  • Derbyshire UK
Re: Myford slotted quadrant
« Reply #15 on: January 15, 2011, 02:31:13 PM »
Quote from: Rob.Wilson on January 15, 2011, 02:24:41 PM
Hi John

So i can cut a 16 DP worm on a shaft   :dremel:

Rob

Don't let the RSPCA find out ...  :lol:  :lol:  :lol:

BC
Logged
I have a few modest talents. Knowing what I'm doing isn't one of them.

Offline John Stevenson

  • In Memoriam
  • Hero Member
  • *****
  • Posts: 1643
  • Nottingham, England.
Re: Myford slotted quadrant
« Reply #16 on: January 15, 2011, 04:33:46 PM »
Is this on a Myford with gearbox ?
Logged
John Stevenson

Rob.Wilson

  • Guest
Re: Myford slotted quadrant
« Reply #17 on: January 15, 2011, 04:52:33 PM »
Spot on John ,,,,,,,,,, it is  :thumbup:

What you thinking ?


Rob
Logged

Rob.Wilson

  • Guest
Re: Myford slotted quadrant
« Reply #18 on: January 16, 2011, 04:15:36 PM »
Pattern nearly done ,,,,just needs a final rub down and top coat  :D





Rob
Logged

Offline John Stevenson

  • In Memoriam
  • Hero Member
  • *****
  • Posts: 1643
  • Nottingham, England.
Re: Myford slotted quadrant
« Reply #19 on: January 16, 2011, 04:47:12 PM »
Don't know if it will physically fit but if you replace the 24tooth gear with a 52 tooth one and select 11 tpi that will give you the same ratio, or very, very close to it.

John S.
Logged
John Stevenson

Rob.Wilson

  • Guest
Re: Myford slotted quadrant
« Reply #20 on: January 17, 2011, 03:09:10 PM »
Hi John

probably would  :thumbup: i worked it out to be  very close to 5TPI  ,,,,,,,,,,, done casting now  :coffee:


Rob
Logged

Offline raynerd

  • Madmodder Committee
  • Hero Member
  • *****
  • Posts: 2893
  • Country: gb
    • Raynerds Projects - Raynerd.co.uk
Re: Myford slotted quadrant
« Reply #21 on: January 17, 2011, 06:30:00 PM »
 :bow: :bow: :bow: :bow: :bow: :bow: :bow: :bow:

Your castings .....  I wish I had that facility!!!! One day... I need to build the flowerpot furnace!!
Logged

Offline Gerhard Olivier

  • Sr. Member
  • ****
  • Posts: 314
Re: Myford slotted quadrant
« Reply #22 on: January 18, 2011, 03:26:19 AM »
What Chris said  :bow: :bow: :bow:

Gerhard
Logged
Guernsey
Channel Islands

Rob.Wilson

  • Guest
Re: Myford slotted quadrant
« Reply #23 on: January 19, 2011, 04:23:47 PM »
Cheers Lard  :thumbup:

Chris ,,,,,,,, its well worth the effort to set up a small foundry  :dremel: :ddb: :ddb: :ddb:


Here it is machined up ,,, pattern needs to be altered as i had a slight miss calculation on the thickness  :doh:  ,,,This one will get me by until i cast another in cast iron this summer .




Now i can get back to  what i was doing  :ddb: :ddb:

Rob
Logged

Offline sbwhart

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 3530
  • Country: gb
  • Smile, Be Happy, Have Fun and Rock Until you Drop
Re: Myford slotted quadrant
« Reply #24 on: January 19, 2011, 04:31:22 PM »
Lovely jubly that man

:thumbup: :thumbup: :thumbup: :thumbup:

Stew
Logged
A little bit of clearance never got in the road
 :wave:
