« Reply #25 on: November 09, 2011, 04:02:39 PM »

If I can get my projects to cooperate.

~Wes~

 :lol: :lol: :lol: :lol: Wes  i know how that one goes  :Doh:

This is a truly madmodder project ,,,,,,,,,,,,,,  :med:


Rob


Offline Stilldrillin

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 4914
  • Country: gb
  • Staveley, Derbyshire. England.
Re: Pirate Cutlass
« Reply #26 on: November 10, 2011, 02:05:04 AM »

If I can get my projects to cooperate.

~Wes~

 :lol: :lol: :lol: :lol: Wes  i know how that one goes  :Doh:

This is a truly madmodder project ,,,,,,,,,,,,,,  :med:


Rob

It certainly is!  :clap: :clap:

Quietly enjoying....... :thumbup:

David D
David.

Still drilling holes... Sometimes, in the right place!

Still modifying bits of metal... Occasionally, making an improvement!

Offline Powder Keg

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 933
  • Country: us
  • Machinist Extraordinaire
Re: Pirate Cutlass
« Reply #27 on: November 11, 2011, 06:44:48 PM »
I'm glad people are enjoying this. Today I managed to get the handle mounted onto my pistol. I also managed to bust off one of the brass screws I was using to mount it with. I had to mill it out bigger and turn a wood dowel to fill the hole and glue it in. I'll try and finish shaping the handle tomorrow.

~Wes~
Wesley P
A Gismo ??? If it has a flywheel or spins and is made with small parts. I'll take one! If it makes noise, moves, or requires frequent oiling and dusting it's a better deal yet. It's especially right if its shiny and bright; but if it's dirty and dull it wont mater at all...

Offline Powder Keg

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 933
  • Country: us
  • Machinist Extraordinaire
Re: Pirate Cutlass
« Reply #28 on: November 13, 2011, 12:03:26 PM »
Before starting the shaping I put a piece of electrical tape on the receiver. This was my gauge to stop filing/sanding. It worked out great!!!



I filed/sanded the wood down where the hand guard is inletted also.



I then shaped and blended everything together. First I filed it close then I sanded it the rest of the way down. I'm using emery cloth glued to a board with great results.



After I got it sanded down where I wanted it I mopped on some denatured alcohol. This raised the grain and cleaned out the pores. I then sanded it down again. I did this several times until the little feathers quit coming back. The wood is almost shiny now.

Later,

~Wes~

 :wave:
Wesley P
A Gismo ??? If it has a flywheel or spins and is made with small parts. I'll take one! If it makes noise, moves, or requires frequent oiling and dusting it's a better deal yet. It's especially right if its shiny and bright; but if it's dirty and dull it wont mater at all...

Rob.Wilson

  • Guest
Re: Pirate Cutlass
« Reply #29 on: November 13, 2011, 04:43:22 PM »
Hi Wes


Whats sort of finish will you be going for on the steel parts ?


Rob

Oh  ,,,, daft question ,, can you walk down the street with it  ?  :D

Offline Bernd

  • Madmodder Committee
  • Hero Member
  • *****
  • Posts: 3683
  • Country: us
  • 1915 C Cab
    • Kingstone Model Works
Re: Pirate Cutlass
« Reply #30 on: November 13, 2011, 05:25:58 PM »

Oh  ,,,, daft question ,, can you walk down the street with it  ?  :D

Rob,

Yes he could, BUT, and there is always a BUT, I think those guys with the badges and guns that have those funny cars with lights on them would have something to say.  :scratch:  :(  :lol:  :lol:  :lol:  :lol:
You can't fix "STUPID".

Offline Powder Keg

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 933
  • Country: us
  • Machinist Extraordinaire
Re: Pirate Cutlass
« Reply #31 on: November 13, 2011, 06:13:58 PM »
I am going to heat blue the hammer and the rest of the metal will just be polished. I was going to blue it, but have changed my mind. I don't want the metalwork to be hid by anything.

This will mainly be a "wall hanger". But I could carry it if I wanted to. It is a black powder weapon and considered antique ordinance. There aren't many laws on them. But you can "open carry" any modern weapon down the street. As long as it's not concealed with out much trouble. Stay out of schools, banks, and government buildings. Then, if you have a permit, you can "conceal carry" which is carrying a hidden weapon.

Later,

~Wes~

 :wave:
Wesley P
A Gismo ??? If it has a flywheel or spins and is made with small parts. I'll take one! If it makes noise, moves, or requires frequent oiling and dusting it's a better deal yet. It's especially right if its shiny and bright; but if it's dirty and dull it wont mater at all...

Offline DaveH

  • Hero Member
  • *****
  • Posts: 1413
  • Country: za
  • Kempton Park, South Africa
Re: Pirate Cutlass
« Reply #32 on: November 13, 2011, 07:05:38 PM »
Wes,

Looks very nice. You have a lot of patience :clap: :thumbup:

 :beer:
DaveH
(Ex Leicester, Thurmaston, Ashby De La Zouch.)

Offline Powder Keg

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 933
  • Country: us
  • Machinist Extraordinaire
Re: Pirate Cutlass
« Reply #33 on: November 13, 2011, 07:16:20 PM »
Thanks DaveH! I'm loosing patience again with this one. But I need to finish it up. It's been in the works for several years now and deserves a place on the wall.

There has been a ton of sanding and smoothing done and I only have a little left. I've been using hand tools for nearly all of it. Power tools would really speed things up but I'm going to stick with the hand tools till it's finished.

Thanks for watching :wave:

~Wes~

Wesley P
A Gismo ??? If it has a flywheel or spins and is made with small parts. I'll take one! If it makes noise, moves, or requires frequent oiling and dusting it's a better deal yet. It's especially right if its shiny and bright; but if it's dirty and dull it wont mater at all...

Rob.Wilson

  • Guest
Re: Pirate Cutlass
« Reply #34 on: November 14, 2011, 12:20:55 PM »
 :lol: :lol: :lol: Cheers Bernd ,,, just though i would ask  :Doh:



Wes ,,,,,,,,,,, have you ever done any Rust bluing ?



Rob


Offline Powder Keg

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 933
  • Country: us
  • Machinist Extraordinaire
Re: Pirate Cutlass
« Reply #35 on: November 14, 2011, 07:22:36 PM »
The only coloring I have done Rob is browning and cold bluing. I liked the way the browning looks, but I don't like applying it. The cold bluing I've used is a piece of cake as long as the part is clean.

 ~Wes~
Wesley P
A Gismo ??? If it has a flywheel or spins and is made with small parts. I'll take one! If it makes noise, moves, or requires frequent oiling and dusting it's a better deal yet. It's especially right if its shiny and bright; but if it's dirty and dull it wont mater at all...

Offline Powder Keg

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 933
  • Country: us
  • Machinist Extraordinaire
Re: Pirate Cutlass
« Reply #36 on: November 14, 2011, 07:28:00 PM »
I've got a question on this build. There are a couple little eyes that hold the ram rod. They are supposed to fit into a couple of dovetails in the barrel. Are these supposed to be a press fit? Or make them snug and silver solder them into place?

Thanks,

~Wes~
Wesley P
A Gismo ??? If it has a flywheel or spins and is made with small parts. I'll take one! If it makes noise, moves, or requires frequent oiling and dusting it's a better deal yet. It's especially right if its shiny and bright; but if it's dirty and dull it wont mater at all...

Offline rleete

  • Madmodder Committee
  • Hero Member
  • *****
  • Posts: 534
  • Country: us
Re: Pirate Cutlass
« Reply #37 on: November 14, 2011, 08:11:10 PM »
The directions I had said to stake them in place with a punch.  That's didn't hold very well, so I soft soldered mine in.
Creating scrap, one part at a time

Offline 75Plus

  • Hero Member
  • *****
  • Posts: 624
  • Country: us
Re: Pirate Cutlass
« Reply #38 on: November 14, 2011, 08:20:45 PM »
I've got a question on this build. There are a couple little eyes that hold the ram rod. They are supposed to fit into a couple of dovetails in the barrel. Are these supposed to be a press fit? Or make them snug and silver solder them into place?

Thanks,

~Wes~

Wes, The old guns had handmade dovetails, cut with a three cornered file with one side ground smooth. The rings were made first and the dovetails were fitted to them.

As to the finish, bluing had not been invented during the period your weapon represents. Brown, as in controlled rust, would be the proper finish. I once had a browning recipe that called for burying a gun barrel in the dirt floor of a smokehouse for a week to get a good start.  :loco: :loco:

Joe

Offline Powder Keg

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 933
  • Country: us
  • Machinist Extraordinaire
Re: Pirate Cutlass
« Reply #39 on: November 22, 2011, 11:01:09 PM »
Sorry for the delay in responding. My home computer died on my. But a friend managed to revive it\o/ I think I'm going to try and stake them first.

I'll try and get a few pictures uploaded soon. I've done quite a bit since I was here before. I cut 3 very shallow rings near the muzzle then brazed over them. I then turned it back down. The affect is very nice. I've also hand sanded all the nicks and dings out of the hand guard, hammer, and trigger guard. I still have the blade to do. It's getting closer\o/

Later,

~Wes~

 :wave:
Wesley P
A Gismo ??? If it has a flywheel or spins and is made with small parts. I'll take one! If it makes noise, moves, or requires frequent oiling and dusting it's a better deal yet. It's especially right if its shiny and bright; but if it's dirty and dull it wont mater at all...

Offline Powder Keg

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 933
  • Country: us
  • Machinist Extraordinaire
Re: Pirate Cutlass
« Reply #40 on: November 24, 2011, 06:23:19 PM »
I put everything back together so I could show my Dad this weekend. It took 5 or six hours to get the blade filed down and cleaned up. What a job!!! But it sure turned out nice!!!!!



Here is a better picture of the hand guard.



I turned three shallow rings and filled them in with brass. Even though there are a couple bug holes in the brass I'm very happy with the results.



Getting closer\o/

~Wes~
Wesley P
A Gismo ??? If it has a flywheel or spins and is made with small parts. I'll take one! If it makes noise, moves, or requires frequent oiling and dusting it's a better deal yet. It's especially right if its shiny and bright; but if it's dirty and dull it wont mater at all...

Offline Bernd

  • Madmodder Committee
  • Hero Member
  • *****
  • Posts: 3683
  • Country: us
  • 1915 C Cab
    • Kingstone Model Works
Re: Pirate Cutlass
« Reply #41 on: November 24, 2011, 07:07:43 PM »
That's one nice piece of looking pirate cutlass you have there Wes.  :bugeye:  :thumbup:

Bernd
You can't fix "STUPID".

Offline Stilldrillin

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 4914
  • Country: gb
  • Staveley, Derbyshire. England.
Re: Pirate Cutlass
« Reply #42 on: November 25, 2011, 02:04:33 AM »
It's all blending together nicely Wes!  :clap: :clap:

Hope your Dad was impressed.......  :thumbup:

David D
David.

Still drilling holes... Sometimes, in the right place!

Still modifying bits of metal... Occasionally, making an improvement!

Offline sbwhart

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 3515
  • Country: gb
  • Smile, Be Happy, Have Fun and Rock Until you Drop
Re: Pirate Cutlass
« Reply #43 on: November 25, 2011, 02:25:01 AM »
That turned out very nice Wes:------- good job  :thumbup: :thumbup: :thumbup: :thumbup:

Stew
A little bit of clearance never got in the road
 :wave:

Location:- Crewe Cheshire

Offline Powder Keg

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 933
  • Country: us
  • Machinist Extraordinaire
Re: Pirate Cutlass
« Reply #44 on: November 25, 2011, 03:34:41 AM »
Thanks guys!!! It's still not done yet. I'm thinking about making some brass  panels to fill in the sides. then I'm planing on doing a little simple engraving. And I still have to shape and install the ramrod eyes. Oh, The horn on the hammer needs a little bit of grip added. It's smooth now.

Later,

~Wes~

 :wave:
Wesley P
A Gismo ??? If it has a flywheel or spins and is made with small parts. I'll take one! If it makes noise, moves, or requires frequent oiling and dusting it's a better deal yet. It's especially right if its shiny and bright; but if it's dirty and dull it wont mater at all...

Offline DaveH

  • Hero Member
  • *****
  • Posts: 1413
  • Country: za
  • Kempton Park, South Africa
Re: Pirate Cutlass
« Reply #45 on: November 25, 2011, 05:13:27 AM »
Wes,

Mighty fine, looks terrific. :clap: :clap: :clap:

 :beer:
DaveH
(Ex Leicester, Thurmaston, Ashby De La Zouch.)

Offline spuddevans

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 1590
  • Country: 00
  • Portadown, Northern Ireland
    • My Photo website
Re: Pirate Cutlass
« Reply #46 on: November 25, 2011, 05:41:09 AM »
Very nice looking work there, Wes  :thumbup: :thumbup: :thumbup:


Tim
Measure with a micrometer, mark with chalk, cut with an axe  -  MI0TME

Offline jgroom

  • Jr. Member
  • **
  • Posts: 87
  • Country: us
  • Kansas USA
Re: Pirate Cutlass
« Reply #47 on: November 25, 2011, 11:29:00 AM »
Wow!  :clap: :clap: :clap:  Looking good Wes!!  :headbang:

Cheers

Jeff

Rob.Wilson

  • Guest
Re: Pirate Cutlass
« Reply #48 on: November 25, 2011, 03:06:37 PM »
 :D :bow: :bow: :bow: :bow: :bow: :bow: looking mighty fine Wes  :clap: :clap: :clap: :clap:


Nice one ,,Rob  :thumbup:

Offline Powder Keg

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 933
  • Country: us
  • Machinist Extraordinaire
Re: Pirate Cutlass
« Reply #49 on: December 03, 2011, 05:22:56 PM »
Thanks again for the compliments. :mmr:

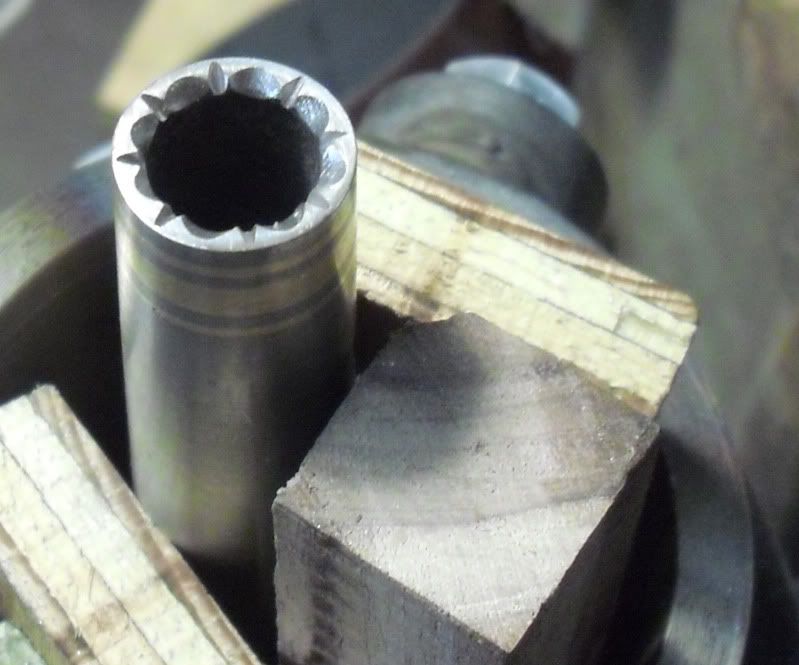

Earlier I found some pictures of guns that had the barrels "coned" after the coning the muzzle was decorated with a little file work. I thought it was pretty neat and wanted to try it out. I first layed out my design with a black sharpie.



I then cut out the nicks with a triangle file. Then I cut out the half circles with a round smooth file.



I had to cut off the smooth ends of the files. This worked out pretty good and I am happy with the result.

Now I didn't cone the barrel on this one. I just filed the decorations into the muzzle. Coning involves using a tappered mandrel that you wrap emery paper around. This is twisted around making the bore, ever so slightly bigger, near the end. This allows the ball and patch to be started easier while loading.

Later,

~Wes~

 :wave:
